A shattered heart: Discovery of two lethal mechanical complications
Las grietas del corazón: hallazgo de dos complicaciones mecánicas mortales
Visitas
348
Alberto Garrido Callén
Autor para correspondencia
, Irene Fernández Muñoz, Marta Martín Muñoz
Critical Care, Rey Juan Carlos Hospital, Móstoles, Madrid
Este artículo ha recibido
Información del artículo
Texto completo
Descargar PDF
Estadísticas
Figuras (3)
Mostrar másMostrar menos
Material adicional (3)
Texto completo

A 62-year-old woman with no personal history of disease was seen due to epigastric pain lasting four days, suffering a right-side pure hemi-motor lacunar stroke with anodyne multimodal CT findings. The ECG tracing evidenced inferior ST-segment elevation with Q waves, and the patient was admitted to intensive care. Transthoracic echocardiography showed septal-basal interventricular communication (IVC) presenting an akinetic inferior aspect with thinning and hyperechogenicity suggestive of pseudoaneurysm with possible contained myocardial rupture (Fig. 1, Video 1). Emergent surgery was discarded due to the neurological condition of the patient and surgical risk due to friability of the tissues. While in wait for the final decision, a cardiac MRI was performed (Fig. 2), after which the patient suffered cardiac arrest with pulseless electrical activity secondary to tamponade, with futile resuscitation efforts (Fig. 3, Videos 2 and 3). Mechanical complications following acute myocardial infarction, while unusual nowadays, remain a potentially fatal and time-dependent disorder in which imaging techniques such as echocardiography continue to play a key role.

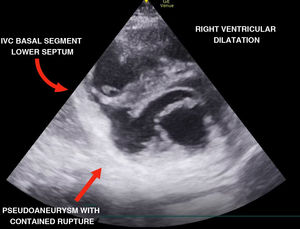

Figure 1

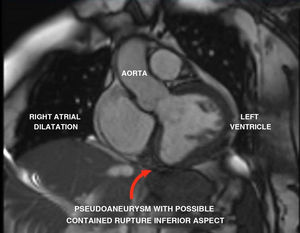

Figure 2

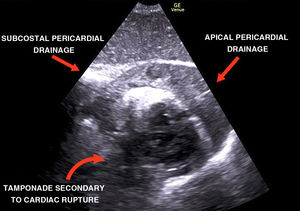

Figure 3
Appendix A
Supplementary data

The following are Supplementary data to this article:

(0.5MB)
(0.59MB)
(0.57MB)
